React Figma
made with React

“ React Figma建立在Figma插件API上。它旨在创建可管理的设计系统。”

安装

Npm

npm i react react-figma

Yarn

yarn add react react-figma

使用

推荐的文件结构：

├── src
│   ├── components
│   ├── App.tsx
│   ├── code.tsx
│   ├── ui.html
│   └── ui.tsx
├── manifest.json
├── package.json
├── tsconfig.json
└── webpack.config.js

配置manifest.json：

{
  "name": <Plugin Name>,
  "id": <Generated ID>,
  "api": "1.0.0",
  "main": "dist/code.js",
  "ui": "dist/ui.html"
}

配置webpack.config.js,需安装yarn add webpack webpack-cli -D:

var configure = require('react-figma-webpack-config');
module.exports = configure({
    entry: {
        ui: './src/ui.js', // The entry point for your UI code
        code: './src/code.js' // The entry point for your plugin code
    },
    ...
});

添加到package.json

{
    "scripts": {
        "webpack:watch": "webpack --watch"
    },
  }

配置code.tsx：

import { setupMainThread } from 'react-figma/rpc';
figma.showUI(__html__, { visible: false });
setupMainThread();

配置 ui.tsx：

import * as React from 'react';
import { App } from './App';
import 'react-figma/rpc';
import { render } from 'react-figma';
render(<App />);

App.tsx：

import * as React from 'react';
import { Page, View, Text } from 'react-figma';
export const App = () => {
    return (
        <Page name="New page" isCurrent>
            <View>
                <View style={{ width: 200, height: 100, backgroundColor: '#dd55aa' }} />
                <Text style={{ color: '#000000' }}>text</Text>
            </View>
        </Page>
    );
};

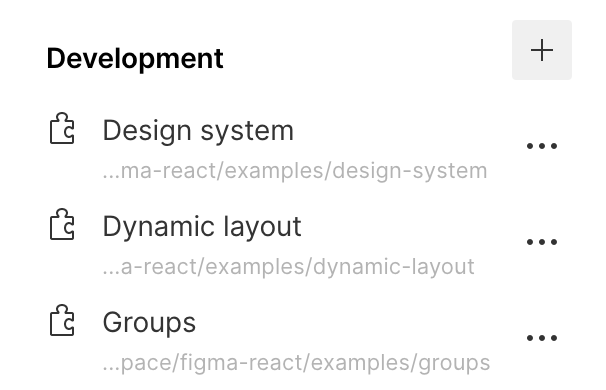

添加插件

导航到Menu > Plugins> Development > + 选择文件 mainfest.json 。

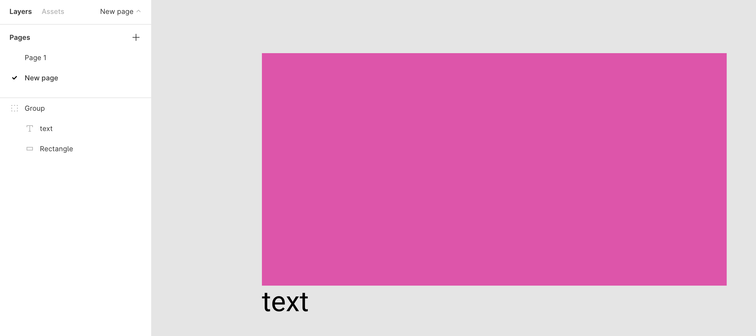

运行插件

导航到 File Menu > Plugins > Development选择你的插件，运行结果：
